Generators

JCB Generators

Serviceability, safety and durability encased in JCB’s trademark yellow! Introducing a comprehensive range of compact generators designed for ultimate productivity and efficiency. Powered by JCB engines, the generators guarantee superior performance with low fuel consumption and low noise. All JCB power products are developed and tested to be safe, sturdy and operate in the harshest environments with a robust, yet aesthetic steel canopy, giving easy operational and servicing access.

Ideal for any power application, these high specification diesel generators leverage JCB’s innovative technology and features, giving more power back to you and your business.

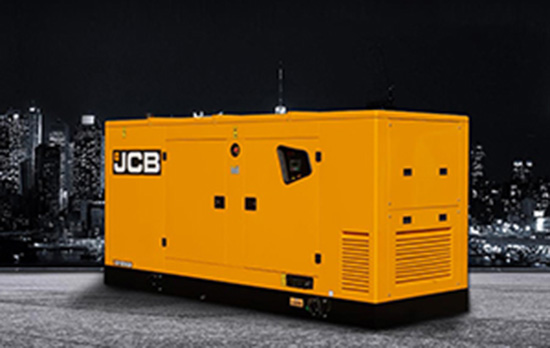

60kVA – 2000kVA

With a 5 Years/5000 Hours warranty (whichever comes first), this is a range of non-stop high-powered backup generators that are innovative, durable and ideal for medium to large-scale coverage such as educational institutions, commercial estates, residential buildings, restaurants or even hotels. Compact in size with an internally built silencer, the unit is easier to load and maneuver if necessary.



Quick Specs

Dimension LxWxH (mm):
3750x1300x1750
Engine Power (kW):
114.8
Prime Power Rating (kVA/kW)
125/100



Features

  • 5 Years Warranty
  • Best in Class Aesthetics
  • Compact in Size
  • Fuel Efficient
  • Safe and Sturdy

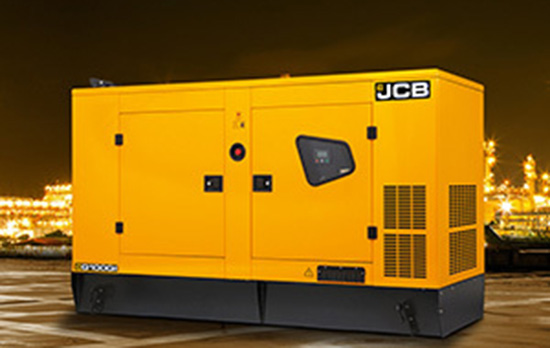

G100Ql

A supercharged and powerful diesel generator, the G100Ql runs on the reliable JCB ecoMax and is extremely safe to operate with two emergency stop buttons located externally and internally. With an engine power of 92kW, the generator also comes equipped with a superior three-stage filtration system with water separators. Maintenance is made easier with removable side and end panels.



Quick Specs

Dimension LxWxH (mm):
2850x1100x165
Engine Power (kW):
92
Prime Power Rating (kVA/kW)
100/80



Features

  • Fuel Efficient - Fast JCB ecoMax, 50 Hz at 1500RPM and CPCBII compliant
  • Compact in Size
  • Safest to Operate, Maintain and Store
  • Best in Class Aesthetics
  • Single Window Product Support
  • Designed to Work in Extreme Environmental Conditions
  • Superior Filtration System
  • Ease of Maintenance

G80Ql

Power generation is simplified with JCB’s G80QI compact generator that guarantees high performance and fuel efficiency. With an internal fuel fill point, this generator also has a top venting hot air outlet with both external and internal emergency buttons for optimum safety. Designed for extreme environments, these JCB generators can efficiently work in over 50-degree temperatures.



Quick Specs



Dimension LxWxH (mm):
2850x1100x165
Engine Power (kW):
72
Prime Power Rating (kVA/kW)
80/64



Features

  • Fuel Efficient - Fast JCB ecoMax, 50 Hz at 1500RPM and CPCBII compliant
  • Compact in Size
  • Safest to Operate, Maintain and Store
  • Best in Class Aesthetics
  • Single Window Product Support
  • Designed to Work in Extreme Environmental Conditions
  • Superior Filtration System
  • Ease of Maintenance

G63Ql

A powerful, high-geared diesel generator running on a JCB ecoMax engine, the G63QI has an engine power of 60kW that is ideal for medium scale properties. A sturdy structure with corrosion and UV resistance enables the generator to withstand extreme conditions. Easy maintenance is ensured with removable side panels for trouble free access and an end panel for radiator maintenance.

Quick Specs

Dimension LxWxH (mm):
2750x1100x165
Engine Power (kW):
60
Prime Power Rating (kVA/kW)
63/50.4



Features

  • Fuel Efficient - Fast JCB ecoMax, 50 Hz at 1500RPM and CPCBII compliant
  • Compact in Size
  • Safest to Operate, Maintain and Store
  • Best in Class Aesthetics
  • Single Window Product Support
  • Designed to Work in Extreme Environmental Conditions
  • Superior Filtration System
  • Ease of Maintenance

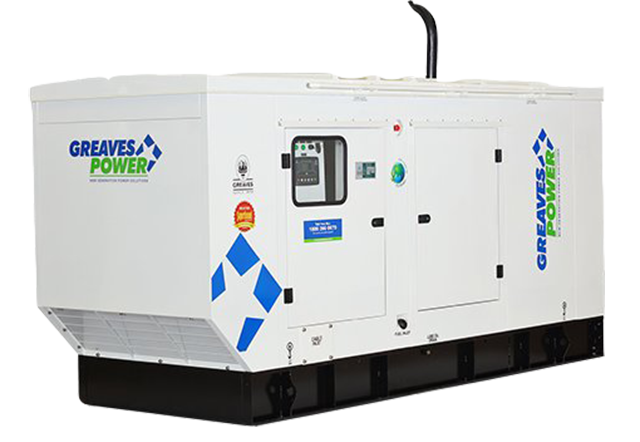

Greaves Power

From the home of Greaves Cotton Limited, a diversified engineering company with a 160 year legacy and a growing global presences, we bring you the Greaves Power range of generator sets to power everyday life across multiple applications, capacities and scale.

From a smart range of portable generator sets that meet your power requirements for residential and commercial complexes, to high-powered industrial generator sets, Greaves produces low footprint, low noise units that are reliable, economical and durable.

Genset Model  GPWII-PII-10E  GPWII-PII-15X  GPWII-PII-20X  GPWII-PII-25E  GPWII-PII-30X  GPWII-PII-40X  GPWII-PII-45X  GPWII-PII-45B  GPWII-PII-50  GPWII-PII-62.5 GPWII-PII-75  GPWII-PII-82.5  GPWII-PII-100  GPWII-PII-125  GPWII-PII-160E  GPWII-PII-180  GPWII-PII-200  GPWII-PII-250  GPW-PII-320  GPWII-PII-320  GPWII-500
Power Rating (kVA/kW) 10 / 8* 15/12   20/16   25/20    30/24   40/32    45/36    45/36*    50/40   62.5/50   75/60   82.5/66   100/80   125/100  160/128  180/144  200/160  250/200  320/256*  400/320*  500/400
No. of Phases  1 / 3  1 / 3  1 / 3   1 / 3   1 / 3   3   3   3   3  3  3  3  3  3  3  3  3  3  3  3  3
Current @ 0.8 PF (Amps)  43.5/13.9   65.2 /20.9   87.0/27.8   87.0/27.8  130.4/41.7   55.6     62.6     62.6    69.6    87.0   104.3  114.8  139.1  173.9  222.4  250.2  278.0  347.5  444.8  556.0  695.0
Power Factor  0.8 OR 1   0.8   0.8    0.8   0.8   0.8   0.8   0.8 /1    0.8   0.8  0.8  0.8  0.8  0.8   0.8/1   0.8  0.8  0.8   0.8/1   0.8  0.8
Battery Rating (AH)   88AH   88AH    88AH    88AH   88AH   88AH   88AH   88AH   88AH   88AH    88AH    88AH    88AH    88AH   120AH   120AH   120AH   2 X 180AH   2 X 180AH   2 X 180AH   2 X 180AH
Integral Fuel Tank Capacity(Ltrs)  50   50   75    75   75   100   100   100   150  150  150  150  350  350  360  360  360  565  810  990  990
 Engine : 1500 RPM, with Premix coolant - 50:50 of Ethylene Glycol and DM water
Engine Model   G-12-II G-15-II  G-20-II  G-25-II   G-30-II G-40-II  G-40-II  3G11TAG25   3G11TAG25    3G11TAG25  3G11TAG26   3G11TAG26    4G11TAG25  4G11TAG26    6G11TAG26  6G11TAG29   6G11TAG29   D3V6TAG21   D3V8TAG21   12V14TAG23   12V14TAG23
Aspiration   Natural   Natural   Natural   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled   Turbocharged   & aftercooled
No. of Cylinders  2  2  3  3  3  4  4  3  3  3  3  3  4  4  6  6  6  6  8  12  12
Compression Ratio   17.5  17.5  17.5  17.5  17.5  17.5  17.5  16.8  16.8  16.8  16.8  16.8  16.8  16.8  16.8  16.8  16.8  16.8  16.8  17  17
Bore x Stroke (mm)  91X110  91X110  91X110  91X110  91X110  91X110  91X110  108X133  108X133  108X133  108X133  108X133  108X133  108X133  108X133  108X133  108X133  128X130  128X130  115X135  115X135
Cubic Capacity (Ltrs)  1.43  1.56  2.14  2.14  2.14  2.86  2.86  3.655  3.655  3.655  3.655   3.655  4.87  4.87  7.31  7.31  7.31  10.03  13.3  16.8  16.8
Power (HP)  18.0  21.6  25.2  34.2  42.0  58.0  58.0  80.2  80.2  80.2  101.3  101.3  126.4  155.0  196.5  243.1  231.1  308.6  386.1  603.7  603.7
Power (kW)  13.3  15.9  18.5  25.5  31.2  42.8  42.8  59.0  59.0  59.0  74.5  74.5  93.0  114.0  144.5  178.8  178.8  227.0  284.0  444.0  444.0
Governing     Mech. /G2 Mech./G2  Mech. /G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Mech. / G2  Electronic/G3  Electronic/G3  Electronic/G3  Electronic/G3
Starting System  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  12V ESE  24V ESE  24V ESE  24V ESE  24V ESE
Lube Oil Sump Capacity (Ltrs) with filter    5.5  5.5  6.5  6.5  6.5  8.5  8.5  8.5  8.5  8.5  8.5  8.5  10  10  17  17  17  30  40  50  50
Lube oil Specification  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4  15W40   Greaves   Maxtherm   API CI4
Alternator: AVR Controlled, Brushless Alternator with 3ph, 50Hz ,voltage range-415V-440 volts. IP23 Protection. Single Phase Voltage 230 Volts. Insulation class H with temperature rise restricted to class H limits.
**Fuel Consumption
100% Load (LPH)  3.0  3.9  5.0  6.3  7.4  9.0  11.1  10.7  12.1  14.9  17.5  19.1  23.6  28.6  36.5  40.2  44.8  58.2  76.5  84.7  107.9
75% Load (LPH)  2.3  2.8  3.8  5.0  5.9  7.0  8.6  8.5  8.9  11.0  12.6  14.0  17.4  20.8  27.2  30.2  33.0  42.3  57.7  63.6  82.5
Genset Installation
 3 & 1/2 Core cable, Al. Armoured (mm2X runs)  10 x 1  16 x 1  25 x 1  25 x 1  25 x 1  35 x 1  35 x 1  35 x 1  50 x 1  70 x 1  95 x 1  95 x 1  150 x 1  95 x 2  120 x 2  150 x 2  185 x 2  70 x 4  120 x 4  185 x 4  240 x 4
 3 & 1/2 Core cable, Cu. Armoured (mm2X runs)  2.5 x 1  4 x 1  4 x 1  6 x 1  10 x 1  16 x 1  25 x 1  25 x 1  25 x 1  35 x 1  50 x 1  70 x 1  95 x 1  120 x 1  70 x 2  95 x 2  120 x 2  95 x 3  150 x 3  150 x 4  185 x 4
 Exh. Pipe Size (NB)  2'' NB  2'' NB  2'' NB  2'' NB  2'' NB  2'' NB  2'' NB  2'' NB  3'' NB  3'' NB  3'' NB  3'' NB  4'' NB  4'' NB  4'' NB  5'' NB  5'' NB  5'' NB  5'' NB  5'' NB  5'' NB
Dimensions
L x W x H (mm) 1420 x 930 x 1242 1420 x 930 x 1242 1650 x 930 x 1242 1650 x 930 x 1242 1650 x 930 x 1242 1890 x 930 x 1320 1890 x 930 x 1320 2500 x 1150 x 1545 2500 x 1150 x 1535 2500 x 1150 x 1535 2800 x 1150 x 1540 2800 x 1150 x 1540 3000 x 1350 x 1884 3000 x 1350 x 1884 3800 x 1350 x 1900 4000 x 1600 x 1900 4000 x 1600 x 1900 4500 x 1800 x 2200 5000 x 2000 x 2220 5600 x 2000 x 2300 5600 x 2000 x 2300
Weight (Kg) (Approx.)  595  660  810  860  945  1200  1490  1210  1210  1230  1270  1270  1600  1610  2150  2295  2300  4050  4300  5490  5610
